High Quality HDPE geocell for Road



Technicical-mechanical property of the product:

specificationheight of chamber(cm)Weld spacing (mm)Expanding size(m2)
DTGS 554004.5*5
DTGS 5 53006.5*4.5
DTGS 8 8100013.2*4.5
DTGS 884004.5*5
DTGS 883306.5*4.5
DTGS 10104004.5*5
DTGS 10103306.5*4.5
DTGS 15154004.5*5
DTGS 15153306.5*4.5
DTGS 20204004.5*5
DTGS 20203306.5*4.5





Description:

Haisan Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implementation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction, the geocell can be pull into a network and launched into a three dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular material, constituted to be a construction which has strong side wise restraint and high rate of stiffness.



 Honeycomb Gravel Stabilizer Driveway Pavers Geocell


ItemTermTest measure
Tensile strengthmeter for piece kmaterial  MPa≥23GB1040-1992
Weld tensile strength N/10cm≥1000GB1040-1992
Tensile failure%≥600GB1040-1992
Low embrittlement temperature ≤-23

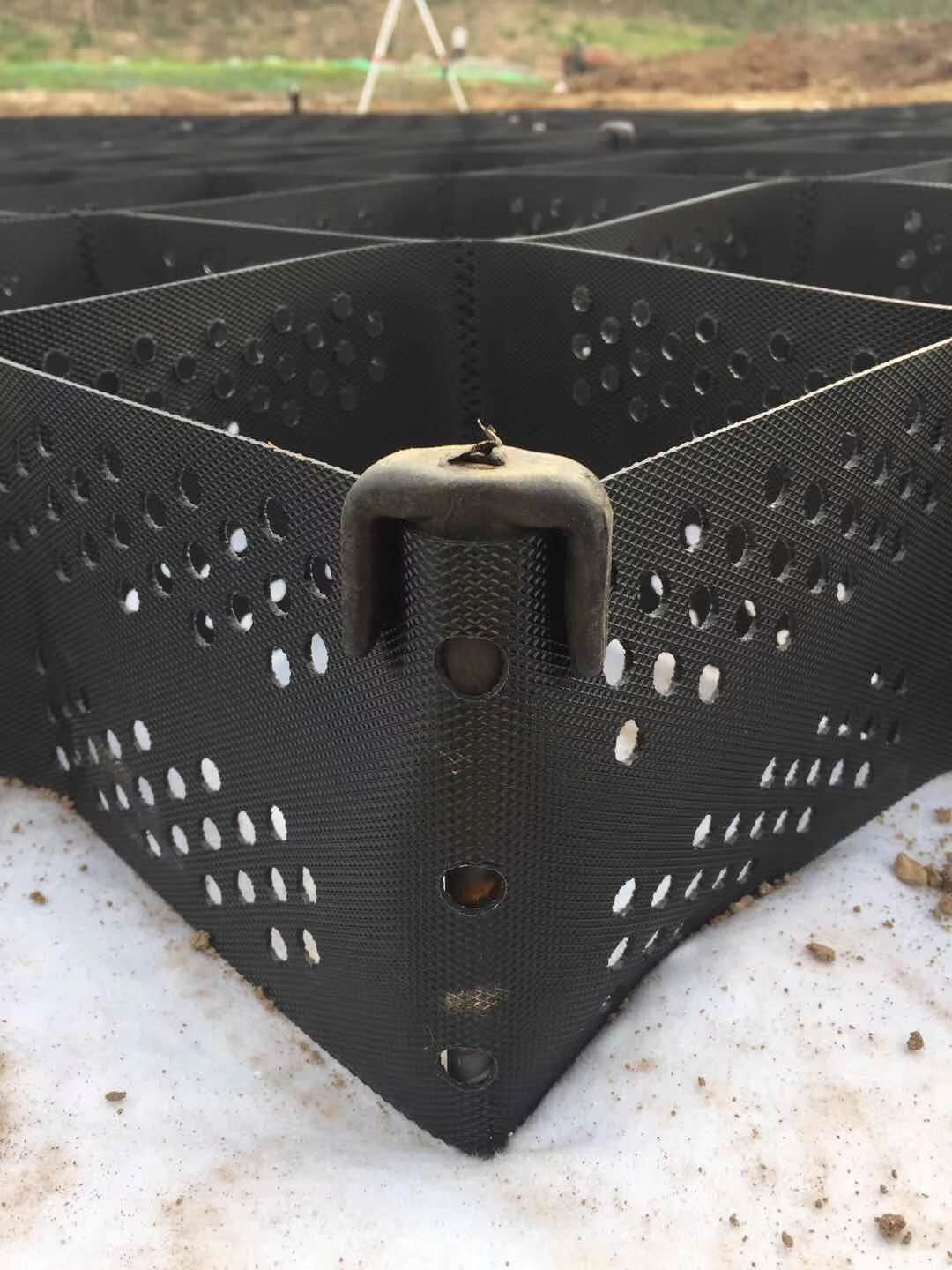

Detailed Images:
High Quality HDPE Geocell Price for Retaining Wall

Honeycomb Gravel Stabilizer Driveway Pavers Geocell



Features:

1.light material, resistant o wear and chemical properties stability, lightfastness aging, acid and basic resistance, applicable to the different soil and geological conditions of the desert.

2.The lateral limits and higher anti-skid and anti-deformation, effectively increase the carrying capacity of roadbed and decentralized load.

3.High capacity and good dynamic performance, anti-erosion ability.

4.A high degree of geocell change, such as welding geometry from different projects can meet the needs.

5.Flexibility,small transport to connect to facilitate the construction speed.

6.The construction of local materials can reduce construction costs, superimposed with convenient for transportation.

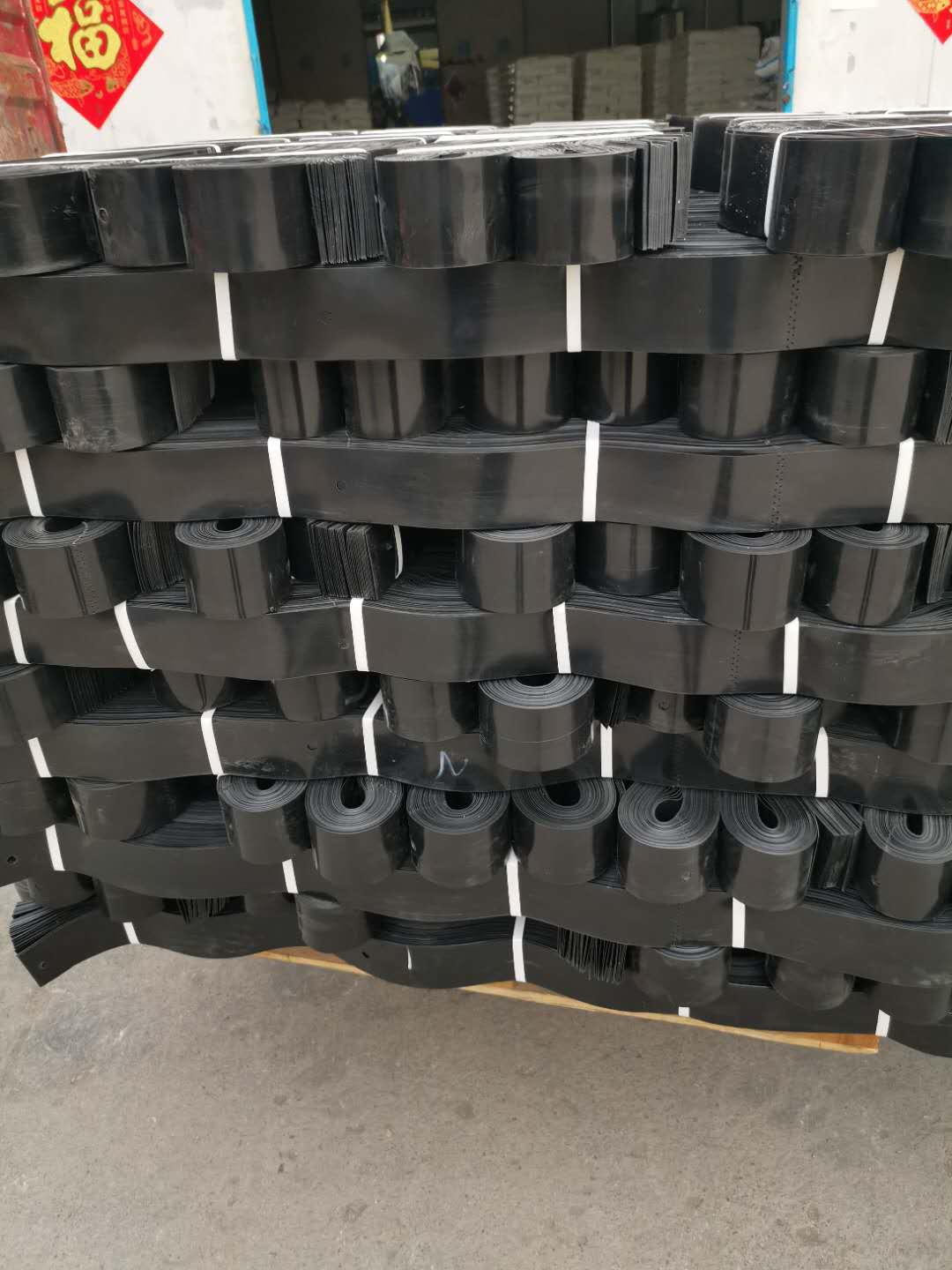

Production line:
Honeycomb Gravel Stabilizer Driveway Pavers Geocell

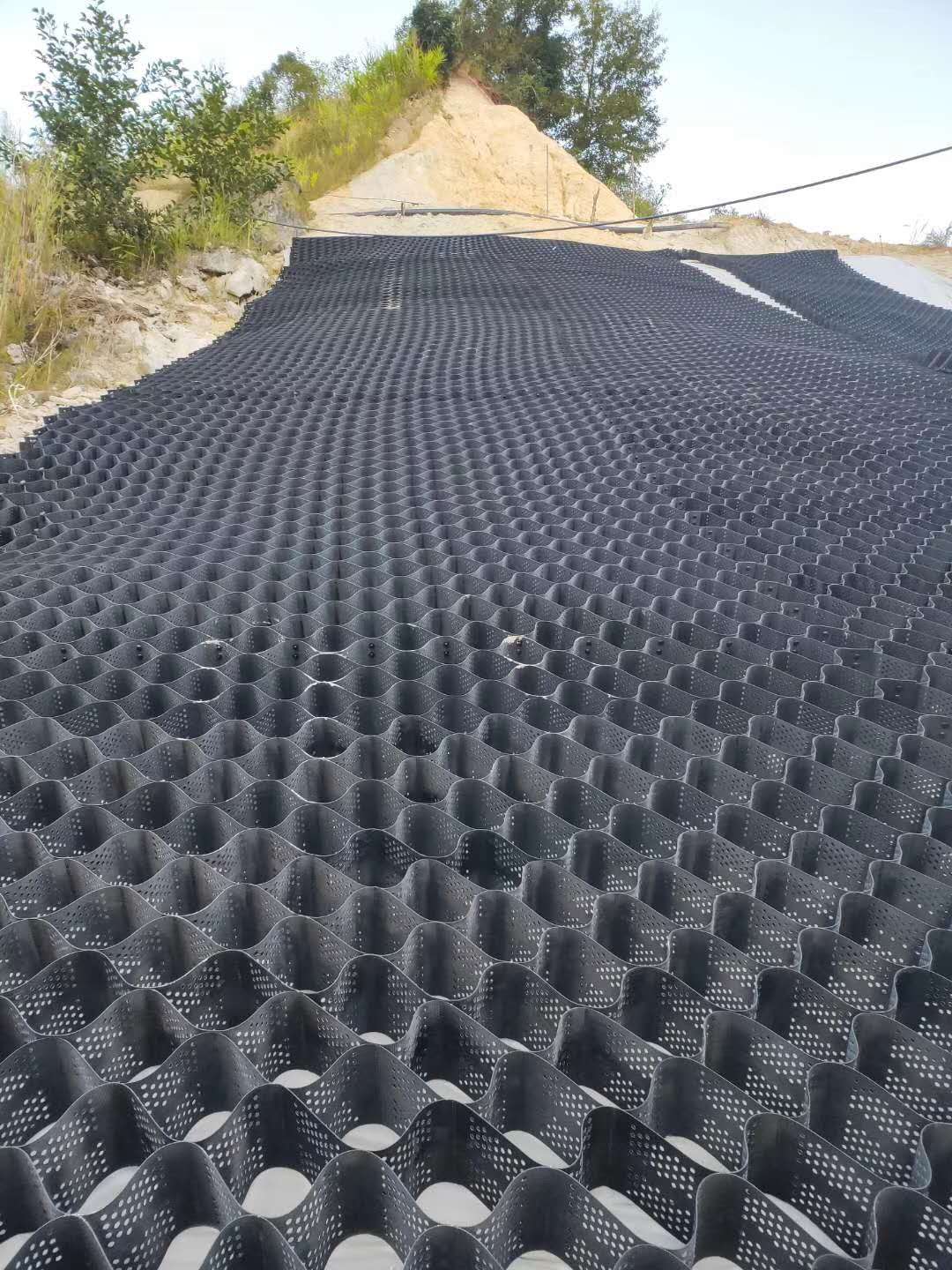

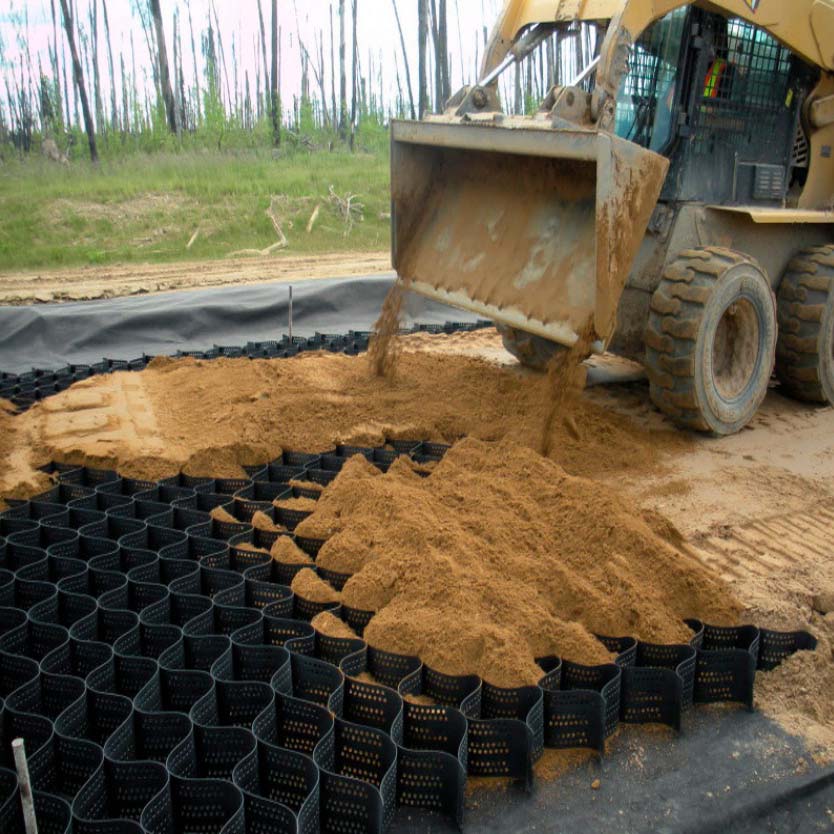

Application

1.stabling railway bed

2.Stabling road soft ground treatment

3.withstanding lad capacities guard against the retaining wall

4.shallow water river courses to govern

5.pipelines and sewer's structural supports

6.prevent the landslide and the load bearing gravity mixed style retaining wall

7.independent walls,the wharf, against slope dike

8.Deserts, the beach and the river bed, the river bank managements.
Honeycomb Gravel Stabilizer Driveway Pavers Geocell
Honeycomb Gravel Stabilizer Driveway Pavers Geocell
